Barcode Director Application

Barcode Director is a volume production application that renames documents, sorts documents, splits documents based on the barcode values . Ready to run, the application operates on PDF, TIFF, JPEG, PNG and many other types of files.

  • Overview
  • Features
  • Operational Profiles
  • Purchase

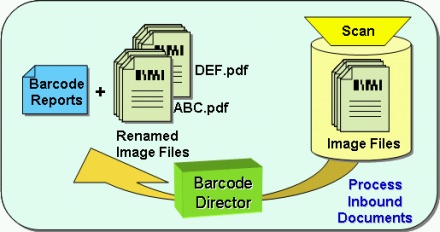

Automate the processing of files that come to you from fax, e-mail, paper scanning or document production.

  1. Read the barcodes on the cover pages or on any inside page, in any orientation.
  2. Extract the data from the barcodes and assign it to your variables and then sort, separate, route and store the image files, in the target folder
  3. Barcode Director can transform any image format into PDF files.
  4. Poor quality images are automatically analyzed, and the appropriate repair scripts are applied to improve the barcode recognition rate .
  5. Best of all, the power of Barcode Director is made available through a simple, intuitive user interface leads you through the sequence of steps to set up the workflow .  Click on screenshots below to see the steps in more detail .

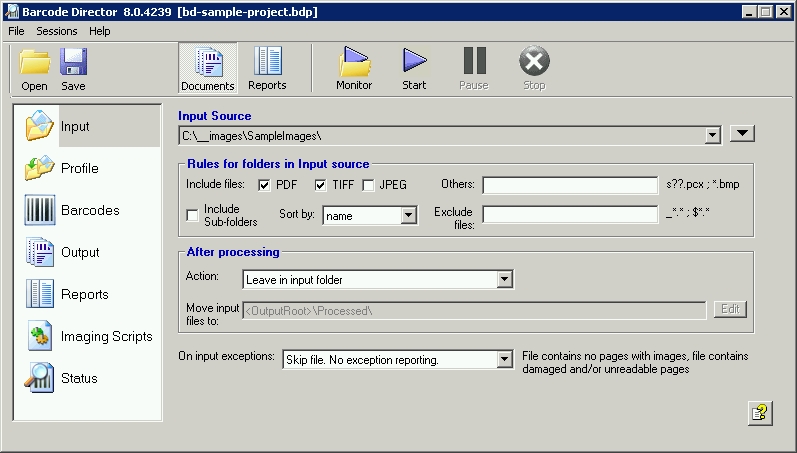

Input configuration:

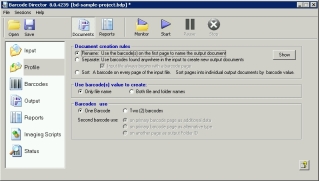

Processing profile configuration:

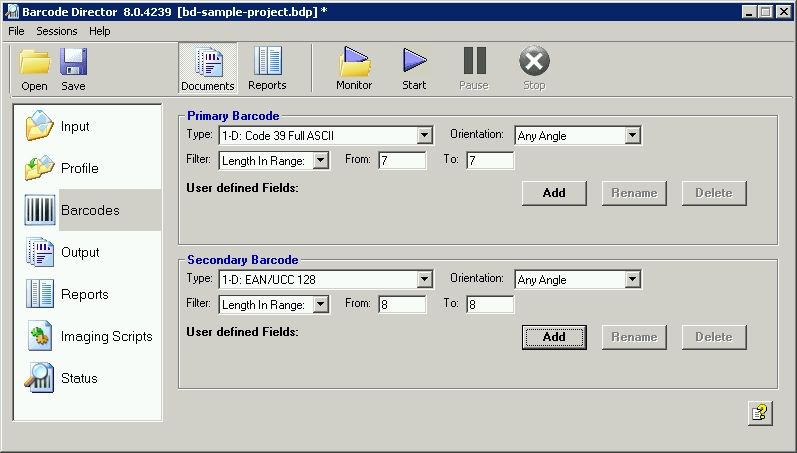

Barcodes configuration:

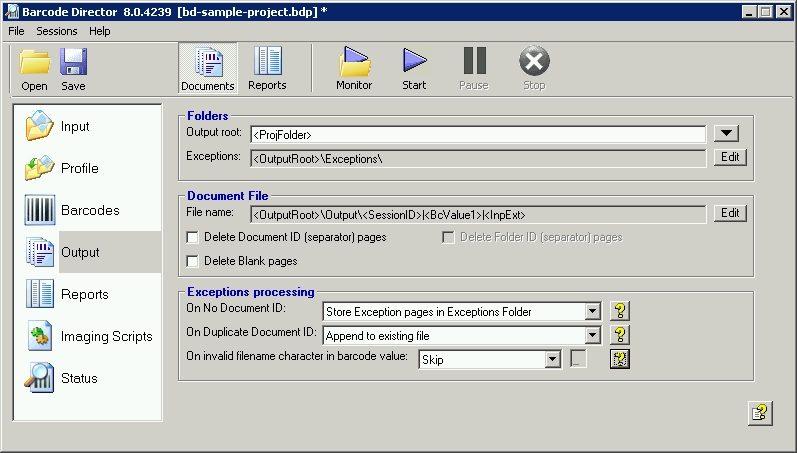

Output configuration:

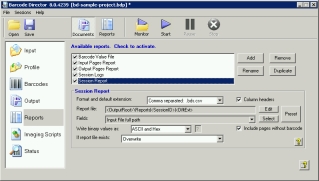

Reports configuration:
Status display:

File Formats

  1. PDF single/multipage, Data PDF, Image PDF, MRC
  2. TIF single/multipage
  3. JPEG, PNG, GIF, BMP, etc.

Input/Output locations

  1. Multiple folders (with optional subfolders)
  2. Include/Exclude input file name filtering
  3. Local or Network drives

Files or folders naming

  1. Barcode value (with optional validation)
  2. Barcode substring (location- or delimiter-based)
  3. Index value, incremented on barcode presence
  4. Secondary barcode value (optional)

Document building modes (profiles)

  1. Rename document using first (cover) page barcodes.
  2. Separate or split documents by barcodes on a special separator page or any page
  3. Sort documents and collect pages with common barcode values
  4. Reporting only mode: read all pages in all files and report the barcode values.

Execution modes

  1. Continuously monitor (watch) input folders OR run on demand
  2. Run as
    • Windows application with User Interface
    • From command line or in batch file
    • Windows Service with Service Manager
    • Scheduled Tasks (Windows Task Scheduler)

Reports

  1. Generate XML, CSV or TAB separated reports
  2. Report barcode values, properties and locations
  3. Reports source and destination of each processed page
  4. Flexible exception detection, processing and reporting

Image/document processing

  1. Exclude cover/separator pages
  2. Exclude blank pages
  3. Apply custom imaging scripts to read very poor quality barcodes

Processing status

  1. Number of input files/pages
  2. Number of detected barcodes/exceptions
  3. Number of created documents
  4. Elapsed test time and time to completion

1D Barcodes

  1. Code 39, Code 93
  2. Code 128, UCC/EAN 128
  3. Codabar, Patch code
  4. Interleaved 2 of 5
  5. UPC-A, UPC-E, EAN-13, EAN-8

Postal Barcodes

  1. US Intelligent Mail
  2. UK Royal Mail
  3. Australian Mail
  4. Postnet / Planet

2D Barcodes

  1. PDF417
  2. DataMatrix
  3. QR

Runtime Environment

  1. Windows Workstation: 7, 8, 10
  2. Windows Server: 2008, 2008 R2, 2012, 2012 R2, 2016, 2019
  3. Virtual Machine, Cloud Deployment (including Amazon EC2, Azure VM)

Profiles define how input documents are converted to output documents. There are three major profiles: rename, separate and sort. Each of them has sub-profiles that deal special requirements of user environment, e.g. use of secondary barcodes, deleting of cover/separator pages, handling exceptions, using barcode substring, etc.

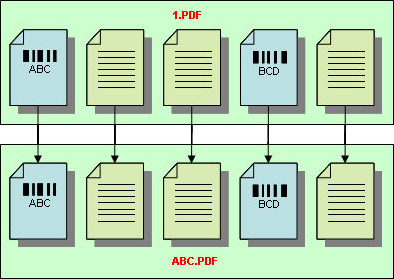

Rename document based on cover page barcode value

This profile names the output document by examining the barcode value only on the FIRST page of the input file. Barcodes on all other pages are ignored. In all other respects the input file and the output file are identical.

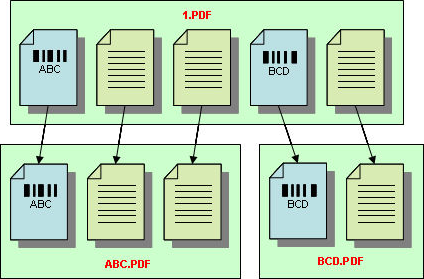

Separate documents based on separator page barcode value

This profile extracts pages from input file starting with and including the page containing barcode, and all subsequent pages, till another page with a barcode, or the end of file is encountered. The net result is to split or separate the original file into a new set of coherent documents. There are typically two situations:

All pages of output documents are contain within a single input document file

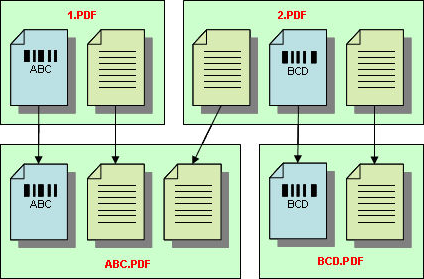

Output document spans multiple input files. For example while faxing large document transmission is interrupted, then resumed from the next pages that is not faxed yet. If second document has no barcode, then in effect two input documents will be combined.

Sort documents based on each page barcode value

This profile expects each page to possess a barcode. It assembles the output document from those input pages whose barcodes have the same value. The input pages can come from one or more input files:

All pages of output documents are contain within a single input document file

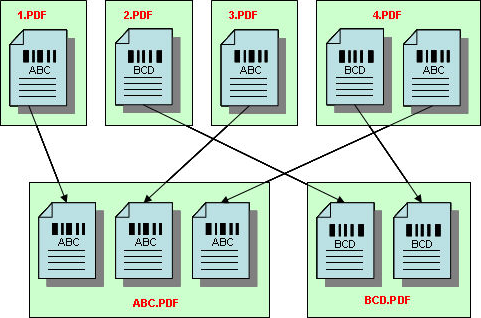

Output document pages come from multiple input files.

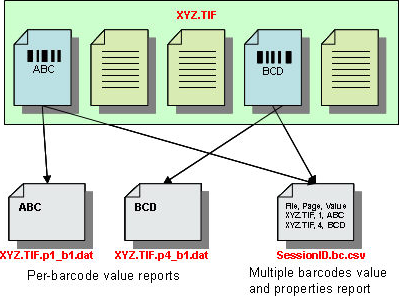

Report barcode values

This profile create reports in XML, CSV or DAT formats with barcode values and properties. Unlike above profiles no output image documents are created. However values multiple barcode types, including large binary data from 2D barcodes, can be collected in a single session. Types, number and format of reports are matched to user's workflow requirements.

NOTE: Profiles that create image documents produce extensive reports as well. Reports document source and destination of all processed pages.

Please read the license requirements and purchase details below.

Barcode Reader Application Runtime License Licences
Barcode Director
$1995.00
Reader 1D
Reader 2D
Reader 1D + 2D
Driver License
Barcode types
Code 39, 128 and other popular 1D
PDF417
DataMatrix
QR
Postal barcodes
Patch document separator
Operational features
Targeted Barcode Reader™ support
Optimized for typical DL/ID damages
Decode Driver Licenses data

Licenses are perpetual and never expire.

A license is required for production use on each physical computer,
each instance of virtual machine, and each cloud VM instance.



All licenses include one year of support (including software updates)

Maximum processing speed:

Deployment Environment
Server License
Workstation License
Windows 7, 8, 10
Unlimited
25 pages-per-minute
Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019
Unlimited
5 pages-per-minute
Virtual Machine and Cloud VM
Unlimited
5 pages-per-minute

Licenses are perpetual and never expire.

A license is required for production use on each physical computer,
each instance of virtual machine, and each cloud VM instance.



All licenses include one year of support (including software updates)


Licenses are perpetual and never expire.

A license is required for production use on each physical computer,
each instance of virtual machine, and each cloud VM instance.



All licenses include one year of support (including software updates)


Each WABR license requires at least one of the following:

  • • ClearImage Reader 1D Server license
  • • ClearImage Reader 2D Server license
  • • ClearImage Reader 1D + 2D Server license
  • • ClearImage Driver License Reader Server license




  • Licensing Policy highlights:
    1. One Runtime License enables the production software to operate on one workstation or one physical server, or one virtual machine, or one cloud VM instance
    2. The number of users, images or cores are not limited by the license.
    3. Unless otherwise arranged with Inlite, the licenses are perpetual and the fees are paid one time in advance.
    4. The license includes support and software updates for one (1) year. Support for additional years is available.
  • All prices are shown in US$. The shopping cart will show prices in your local currency. Prices are subject to change without notice.

  • Inlite uses 2Checkout services to operate the shopping cart and process CREDIT CARD purchases only.   2Checkout collects VAT and sales taxes.  Use the links on your confirmation email to contact them, or to obtain copies of the receipts.

  • Please contact us, if you want to:
    1. Pay by Paypal, bank wire or check
    2. Issue purchase order, or get a formal quotation
    3. Order more than 10 licenses or have special requirements
