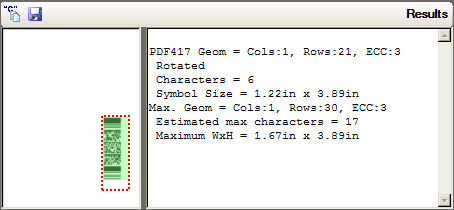

The results panel contains
The Get Configuration String icon
Results of the barcode generation
The results include a description of the Active Barcode
Geometry details that pertain to the symbology of the barcode
Data size in characters
Symbol size in Inches
Any error messages
In the Process Design method, where the area is designated, the Results Panel will also include
The usual geometry results, as shown above, and
a description of the maximum size of the barcode that would fit into that area
For example:
Max. Geom = Cols:9, Rows:20, ECC:3
Estimated max characters = 248
Maximum WxH = 1.10in x 5.65in
TIP:
The maximum size of the barcode will fit into the designated
area, but may not use all of it, due to geometry limitations.
