Designated Area

Designated Barcode Area

Area Size

You can enter the size in the fields below, or you can use the image27.gif tool to draw an area on the Image Panel and see the size in the panel.

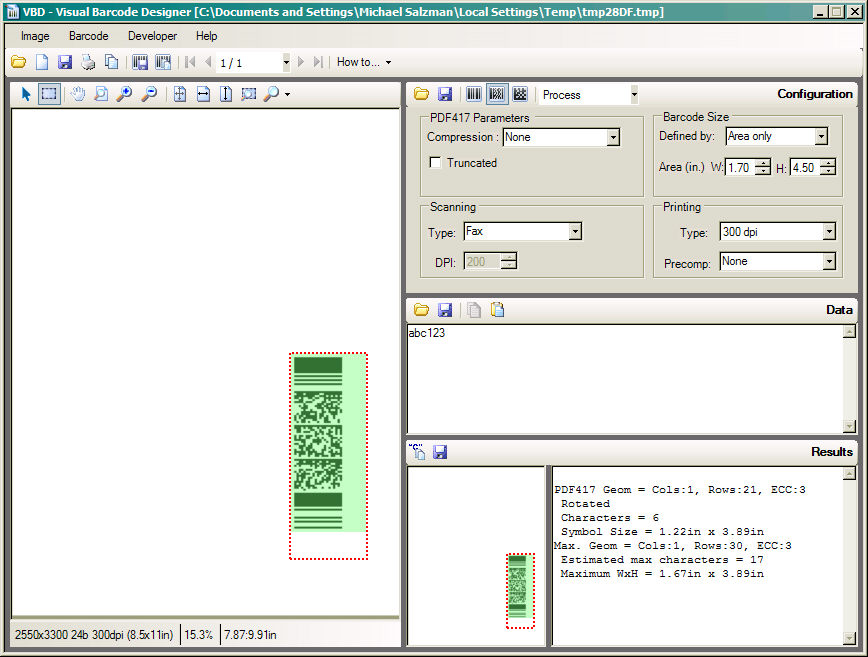

Rectangular Areas



If you draw an area whose width is much smaller than its height, VBD will attempt to rotate the 1D and PDF417 barcodes to fit the vertical orientation
