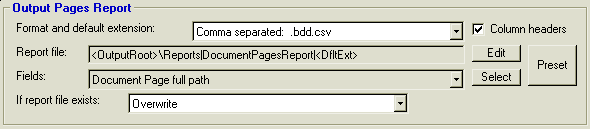

The Output Pages report contains data associated with each output page of Document mode session. Most importantly it identifies source of the page in input file.
Format and default extension.
The report can be produced in the following formats
| Format | Extension | Notes |
| Comma Separated | .bdd.csv | Check the adjacent box to include a 1st row with column headers in the report |
| Tab Separated | .bdd.txt | Check the adjacent box to include a 1st row with column headers in the report |
| XML | .bdd.xml | Column headers used as XML attribute names |
Column header
Enable/disable presence of Column header in Comma Separated and Tab Separated formats. Names of columns in the header are fixed. Examine contents of the file to identify names of the columns.
Report File
To specify location of the report click the Edit button to open the File Name editor dialog.
Fields
To specifies type and order of data to be present in the report click the Select button to open Select Fields dialog box. Click the Preset button to select default set of fields.
f report file exists
Specify action of Barcode Director if report file already exists. Options:
Overwrite. Overwrites the existing file
Append. Report data of the report are merged or appended at the end of existing report file.
Create
unique file name. String with format _NNNN_
is inserted in file name before extension.
For example MyReport.bdd.csv
becomes MyReport.bdd._0001_.csv
Report an exception. Report is not created. Exceptions is generated and recorded in XML Results.
